- Certified for :
Class I, Division 1, Group D T3C and Class II, Division 1, Groups F and G
*Class II, Division 1, Group E (metal dust) motor available
- Manufactured in the USA - ISO 9001:2008 compliant
- UL/CSA compliant - Declarations of conformity on file

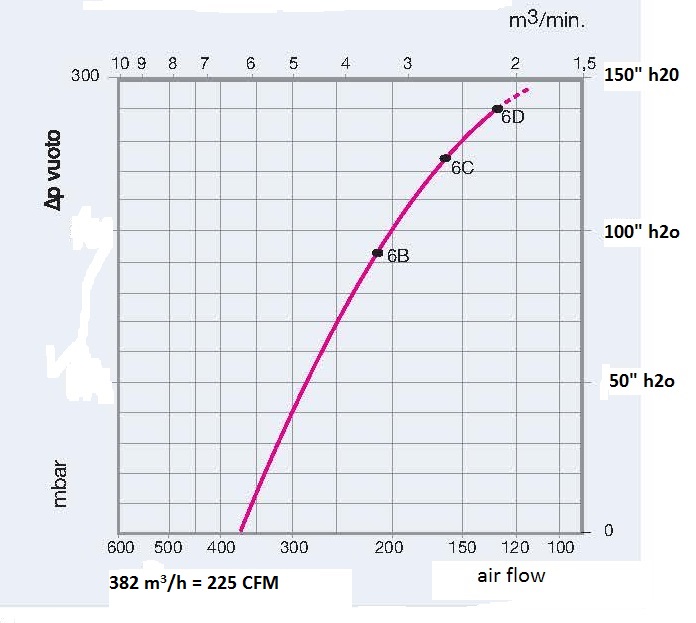

- Maximum Flow: 225 CFM
- Maximum Vacuum: >155" H2O
- Standard Motor: 5 HP, TEFC
- Cast aluminum Blower Housing, Impeller and Cover
- Cast aluminum Threaded Flanges. 2" F-NPT
- UL and CSA approved motor with permanently sealed ball bearings
- Inlet and Outlet internal muffling
- Quiet operation. dB(A) within OSHA standards
- For industrial applications
- Available with the ability to stand up to corrosive chemical processing. Baldor® Motors come standard already coated with a corrosion resistant epoxy finish. Tiger-Vac Regenerative Blowers can also be coated with an epoxy finish upon request.
|
